| Part Number | Forward/reverse channels | Data rate (Max) (Mbps) | VCCx (V) | Prop. Delay (ns) | Current/channel Typ (mA) | Default output | CMTI (kV/μs) Min | Operating Temp（℃) | VISO(Vrms) | Package Group | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SiLM5768L系列（带互锁的高速六通道数字隔离器） | 下载 | |||||||||||
| SiLM5768LCG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 13 | 1.4 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5768LNCG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 13 | 1.4 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |

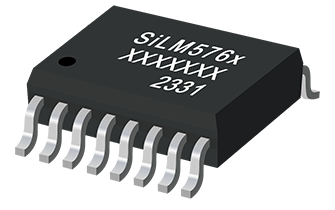

| SiLM576x系列（高速六通道数字隔离器） | 下载 | |||||||||||
| SiLM5760CG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | High | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5760FCG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | Low | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5761CG-DG | 5 forward /1 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | High | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5761FCG-DG | 5 forward /1 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | Low | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5762CG-DG | 4 forward /2 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | High | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5762FCG-DG | 4 forward /2 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | Low | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5763CG-DG | 3 forward /3 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | High | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5763FCG-DG | 3 forward /3 reverse | 100 | 2.25 ~ 5.5 | 11 | 1.5 | Low | 100 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5768LCG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 13 | 1.4 | Low | 150 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5768LNCG-DG | 6 forward / 0 reverse | 100 | 2.25 ~ 5.5 | 13 | 1.4 | Low | 150 | 5000 | -40 ~ 125 | SOP16W | Reel/1500 | |
